Oversikt over forskjellige masteprofiler fra masteprodusent

11. februar 2026 etter

Didrik Godaker

| No comments yet

Vi har laget en oversikt over forskjellige masteprofiler fra forskjellige masteprodusenter.

Veldig mye informasjon om en mast baserer seg på hvilket masteprofil du har. Vi ber derfor svært mange som henvender seg om å sjekke hvilket masteprofil de har. Begynn me å mål tverrsnitt så godt det lar seg gjøre, sjekk deretter målene dine med etter hvilket merke masten er.

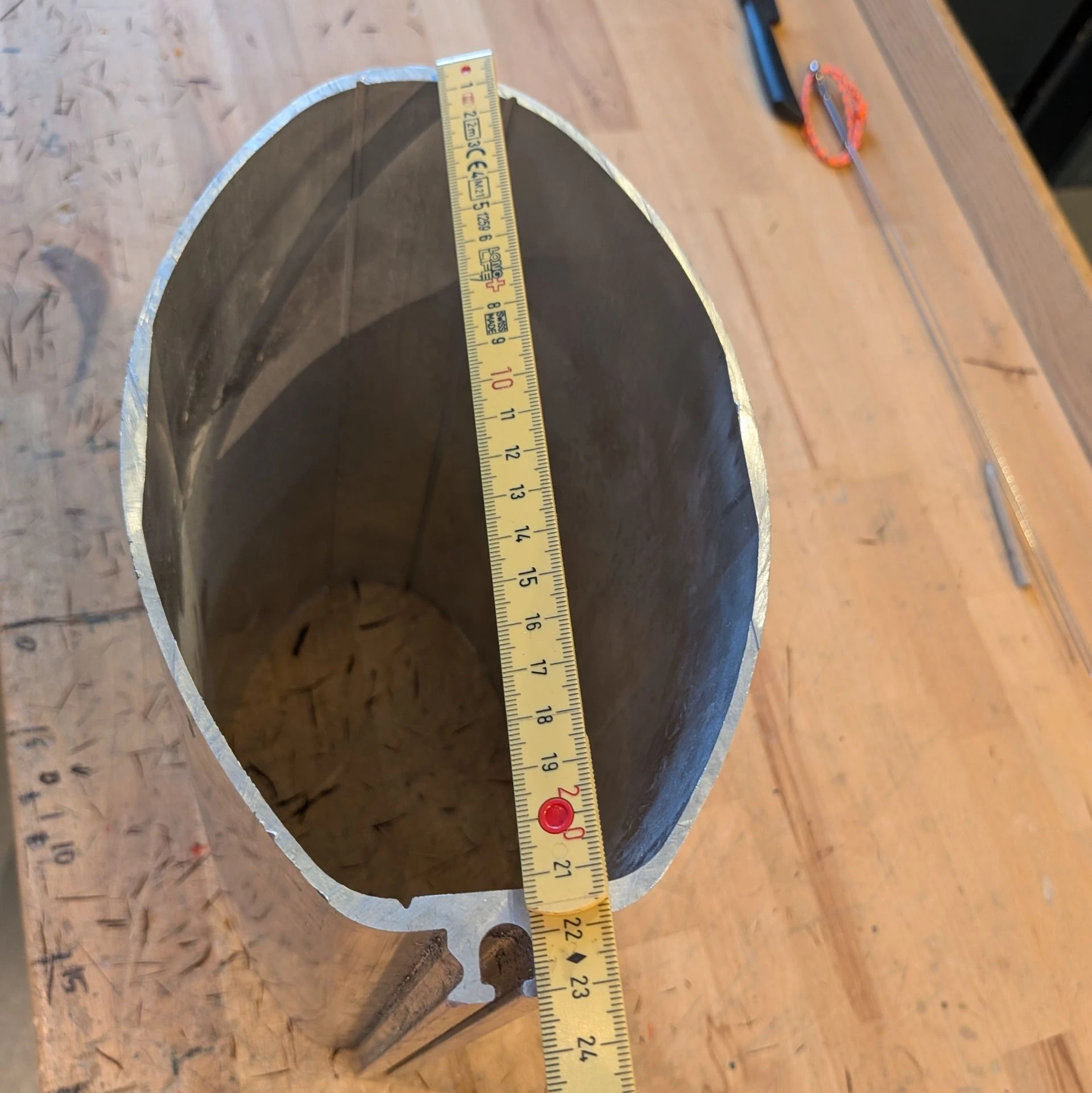

Mål lengde masteprofil

Mål bredde masteprofil

Mål Bredde masteprofil

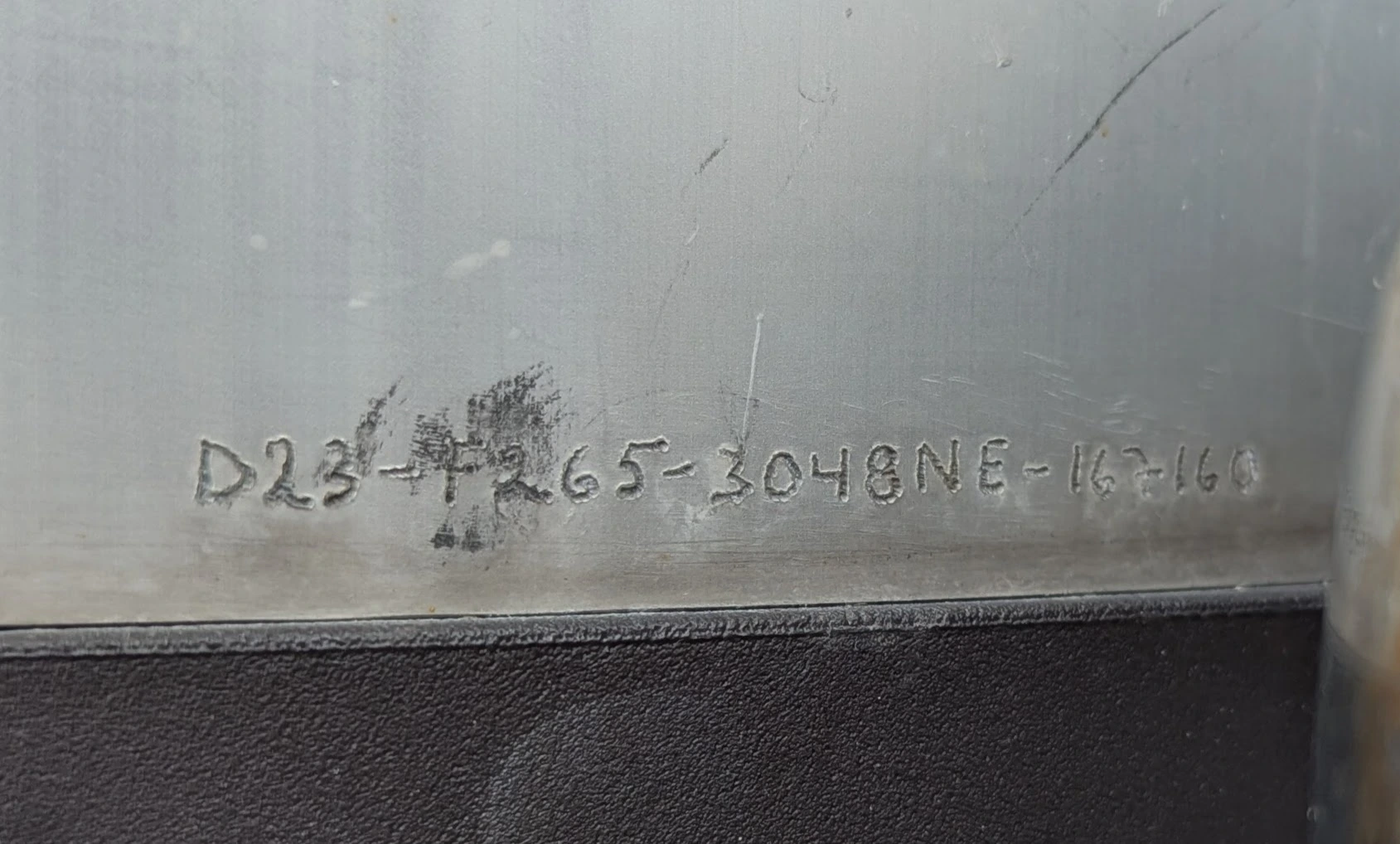

Selden har merket masten i bunn. Dette merke er bilde av en F2665 profil fra Selden

Merke	Profilnavn	Materiale	Lengde x Bredde	Treghetsmoment Tverrskips	Treghetsmoment Langskips	Vekt
AG+ SPARS	D54 (D-section)	Aluminium	63 x 54 mm	13.60 cm4	18.00 cm4	0.90 kg/ml
AG+ SPARS	D57M (D-section)	Aluminium	72 x 57 mm	12.00 cm4	19.50 cm4	1.00 kg/ml
AG+ SPARS	D57S (D-section)	Aluminium	72 x 57 mm	15.50 cm4	20.00 cm4	1.03 kg/ml
AG+ SPARS	D61 (D-section)	Aluminium	74 x 61 mm	18.60 cm4	25.00 cm4	1.15 kg/ml
AG+ SPARS	D65 (D-section)	Aluminium	83 x 65 mm	22.40 cm4	32.00 cm4	1.28 kg/ml
AG+ SPARS	D66 (D-section)	Aluminium	90 x 66 mm	32.00 cm4	44.70 cm4	1.44 kg/ml
AG+ SPARS	M185 (M-section)	Aluminium	106 x 78 mm	52.00 cm4	101.00 cm4	1.85 kg/ml
AG+ SPARS	C132 (C-section)	Aluminium	132 x 76 mm	46.00 cm4	125.00 cm4	1.90 kg/ml
AG+ SPARS	C152 (C-section)	Aluminium	152 x 76 mm	55.00 cm4	170.00 cm4	2.05 kg/ml
AG+ SPARS	M225 (M-section)	Aluminium	122 x 82 mm	70.00 cm4	151.00 cm4	2.25 kg/ml
AG+ SPARS	M250 (M-section)	Aluminium	133 x 83 mm	81.00 cm4	197.00 cm4	2.55 kg/ml
AG+ SPARS	M275 (M-section)	Aluminium	145 x 100 mm	125.00 cm4	245.00 cm4	2.75 kg/ml
AG+ SPARS	M350 (M-section)	Aluminium	169 x 115 mm	195.00 cm4	455.00 cm4	3.60 kg/ml
AG+ SPARS	C200 (C-section)	Aluminium	210 x 110 mm	210.00 cm4	600.00 cm4	3.80 kg/ml
AG+ SPARS	M410 (M-section)	Aluminium	185 x 115 mm	267.00 cm4	636.00 cm4	4.10 kg/ml
JOHN MAST	ELLIPSE	Aluminium	92 x 62 mm	30.00 cm4	60.00 cm4	1.90 kg/ml
JOHN MAST	DELTA	Aluminium	80 x 60 mm	27.00 cm4	55.00 cm4	2.00 kg/ml
JOHN MAST	DELTA	Aluminium	90 x 60 mm	27.00 cm4	55.00 cm4	2.00 kg/ml
JOHN MAST	DELTA	Aluminium	104 x 73 mm	56.00 cm4	121.00 cm4	2.00 kg/ml
JOHN MAST	ELLIPSE	Aluminium	116 x 81 mm	60.00 cm4	125.00 cm4	2.20 kg/ml
JOHN MAST	ELLIPSE	Aluminium	125 x 85 mm	79.00 cm4	167.00 cm4	2.50 kg/ml
JOHN MAST	DELTA	Aluminium	115 x 78 mm	78.00 cm4	171.00 cm4	3.00 kg/ml
JOHN MAST	DELTA	Aluminium	135 x 95 mm	132.00 cm4	273.00 cm4	3.20 kg/ml
JOHN MAST	ELLIPSE	Aluminium	150 x 100 mm	152.00 cm4	337.00 cm4	3.50 kg/ml
JOHN MAST	DELTA	Aluminium	150 x 105 mm	180.00 cm4	325.00 cm4	3.50 kg/ml
JOHN MAST	ELLIPSE	Aluminium	170 x 125 mm	227.00 cm4	509.00 cm4	4.00 kg/ml
JOHN MAST	DELTA	Aluminium	165 x 115 mm	232.00 cm4	468.00 cm4	4.00 kg/ml
JOHN MAST	DELTA	Aluminium	180 x 117 mm	288.00 cm4	668.00 cm4	4.70 kg/ml
JOHN MAST	DELTA	Aluminium	160 x 103 mm	250.00 cm4	550.00 cm4	5.00 kg/ml
JOHN MAST	ELLIPSE	Aluminium	190 x 140 mm	490.00 cm4	872.00 cm4	5.20 kg/ml
JOHN MAST	DELTA	Aluminium	185 x 112 mm	327.00 cm4	747.00 cm4	5.30 kg/ml
JOHN MAST	ELLIPSE	Aluminium	220 x 150 mm	723.00 cm4	1392.00 cm4	7.20 kg/ml
JOHN MAST	DELTA	Aluminium	210 x 120 mm	470.00 cm4	1480.00 cm4	7.70 kg/ml
JOHN MAST	ELLIPSE	Aluminium	262 x 184 mm	1386.00 cm4	2596.00 cm4	9.00 kg/ml
JOHN MAST	DELTA	Aluminium	245 x 140 mm	863.00 cm4	2370.00 cm4	9.10 kg/ml
JOHN MAST	DELTA	Aluminium	258 x 164 mm	1160.00 cm4	3250.00 cm4	9.90 kg/ml
JOHN MAST	ELLIPSE	Aluminium	290 x 192 mm	1823.00 cm4	3437.00 cm4	10.60 kg/ml
JOHN MAST	ELLIPSE	Aluminium	302 x 244 mm	3832.00 cm4	5430.00 cm4	13.80 kg/ml
JOHN MAST	DELTA	Aluminium	325 x 244 mm	4420.00 cm4	6970.00 cm4	15.10 kg/ml
NORDIC MAST	F 67	Aluminium	118 x 82 mm	67.00 cm4	128.00 cm4	2.05 kg/ml
NORDIC MAST	NM 210	Aluminium	112 x 70 mm	36.00 cm4	95.00 cm4	2.10 kg/ml
NORDIC MAST	NM 220	Aluminium	115 x 80 mm	57.00 cm4	110.00 cm4	2.20 kg/ml
NORDIC MAST	NM 230	Aluminium	121 x 81 mm	78.00 cm4	158.00 cm4	2.30 kg/ml
NORDIC MAST	F 101	Aluminium	132 x 96 mm	101.00 cm4	208.00 cm4	2.43 kg/ml
NORDIC MAST	NM 270	Aluminium	125 x 86 mm	89.00 cm4	190.00 cm4	2.70 kg/ml
NORDIC MAST	NM 290	Aluminium	135 x 99 mm	111.00 cm4	214.00 cm4	2.90 kg/ml
NORDIC MAST	NM 330	Aluminium	133 x 94 mm	136.00 cm4	254.00 cm4	3.30 kg/ml
NORDIC MAST	F 135	Aluminium	140 x 90 mm	135.00 cm4	400.00 cm4	3.40 kg/ml
NORDIC MAST	NM 370	Aluminium	138 x 92 mm	132.00 cm4	311.00 cm4	3.70 kg/ml
NORDIC MAST	NM 405	Aluminium	147 x 95 mm	174.00 cm4	373.00 cm4	4.05 kg/ml
NORDIC MAST	I 260	Aluminium	170 x 115 mm	260.00 cm4	543.00 cm4	4.10 kg/ml
NORDIC MAST	F 195	Aluminium	160 x 98 mm	190.00 cm4	580.00 cm4	4.10 kg/ml
NORDIC MAST	NM 430	Aluminium	148 x 104 mm	220.00 cm4	425.00 cm4	4.30 kg/ml
NORDIC MAST	I 330	Aluminium	180 x 120 mm	325.00 cm4	742.00 cm4	4.70 kg/ml
NORDIC MAST	F 230	Aluminium	174 x 103 mm	230.00 cm4	724.00 cm4	5.00 kg/ml
NORDIC MAST	NM 510	Aluminium	186 x 126 mm	363.00 cm4	782.00 cm4	5.10 kg/ml
NORDIC MAST	F 305	Aluminium	188 x 104 mm	305.00 cm4	940.00 cm4	5.20 kg/ml
NORDIC MAST	F 385	Aluminium	202 x 110 mm	380.00 cm4	1050.00 cm4	5.90 kg/ml
NORDIC MAST	F 460	Aluminium	215 x 116 mm	460.00 cm4	1375.00 cm4	6.60 kg/ml
NORDIC MAST	NM 660	Aluminium	200 x 117 mm	366.00 cm4	1311.00 cm4	6.60 kg/ml
NORDIC MAST	F 580	Aluminium	227 x 123 mm	580.00 cm4	1680.00 cm4	7.30 kg/ml
NORDIC MAST	F 740 A	Aluminium	245 x 130 mm	740.00 cm4	2450.00 cm4	8.30 kg/ml
NORDIC MAST	F 1060A	Aluminium	264 x 144 mm	1060.00 cm4	3250.00 cm4	9.80 kg/ml
NORDIC MAST	F 1395 A	Aluminium	285 x 155 mm	1395.00 cm4	4250.00 cm4	11.30 kg/ml
NORDIC MAST	F 2390	Aluminium	315 x 185 mm	2410.00 cm4	6750.00 cm4	13.80 kg/ml
NORDIC MAST	F 3360	Aluminium	340 x 205 mm	3405.00 cm4	8760.00 cm4	15.40 kg/ml
SELDEN	C156 (C-section)	Aluminium	156 x 87 mm	144.00 cm4	391.00 cm4	3.71 kg/ml
SELDEN	C175 (C-section)	Aluminium	175 x 93 mm	191.00 cm4	558.00 cm4	4.18 kg/ml
SELDEN	F176 (F-section)	Aluminium	176 x 93 mm	187.00 cm4	526.00 cm4	4.20 kg/ml
SELDEN	C180 (C-section)	Aluminium	180 x 113 mm	252.00 cm4	592.00 cm4	4.32 kg/ml
SELDEN	F185 (F-section)	Aluminium	185 x 104 mm	252.00 cm4	592.00 cm4	4.39 kg/ml
SELDEN	C192 (C-section)	Aluminium	192 x 120 mm	339.00 cm4	797.00 cm4	4.60 kg/ml
SELDEN	C193 (C-section)	Aluminium	193 x 102 mm	257.00 cm4	779.00 cm4	4.74 kg/ml
SELDEN	F194 (F-section)	Aluminium	194 x 101 mm	254.00 cm4	709.00 cm4	4.79 kg/ml
SELDEN	F199 (F-section)	Aluminium	199 x 113 mm	337.00 cm4	797.00 cm4	5.00 kg/ml
SELDEN	C211 (C-section)	Aluminium	211 x 110 mm	341.00 cm4	1051.00 cm4	5.34 kg/ml
SELDEN	F212 (F-section)	Aluminium	212 x 109 mm	337.00 cm4	970.00 cm4	5.49 kg/ml
SELDEN	C227 (C-section)	Aluminium	227 x 119 mm	456.00 cm4	1407.00 cm4	6.15 kg/ml
SELDEN	F228 (F-section)	Aluminium	228 x 118 mm	453.00 cm4	1306.00 cm4	6.35 kg/ml
SELDEN	C245 (C-section)	Aluminium	245 x 127 mm	614.00 cm4	1910.00 cm4	7.15 kg/ml
SELDEN	F246 (F-section)	Aluminium	246 x 126 mm	613.00 cm4	1781.00 cm4	7.44 kg/ml
SELDEN	C264 (C-section)	Aluminium	264 x 136 mm	830.00 cm4	2591.90 cm4	8.40 kg/ml
SELDEN	F265 (F-section)	Aluminium	265 x 135 mm	828.00 cm4	2392.90 cm4	8.73 kg/ml
SELDEN	C285 (C-section)	Aluminium	285 x 147 mm	1127.00 cm4	3508.90 cm4	9.72 kg/ml
SELDEN	F286 (F-section)	Aluminium	286 x 146 mm	1122.00 cm4	3237.90 cm4	10.10 kg/ml
SELDEN	C274 (C-section)	Aluminium	274 x 185 mm	1653.00 cm4	3689.90 cm4	10.18 kg/ml
SELDEN	C304 (C-section)	Aluminium	304 x 157 mm	1524.00 cm4	4686.90 cm4	11.44 kg/ml
SELDEN	F305 (F-section)	Aluminium	305 x 156 mm	1513.00 cm4	4389.90 cm4	11.84 kg/ml
SELDEN	C321 (C-section)	Aluminium	321 x 171 mm	2056.00 cm4	5822.90 cm4	13.06 kg/ml
SELDEN	F324 (F-section)	Aluminium	324 x 169 mm	2056.00 cm4	5576.90 cm4	13.80 kg/ml
SELDEN	C365 (C-section)	Aluminium	365 x 194 mm	3161.00 cm4	9160.90 cm4	15.50 kg/ml
SELDEN	F370 (F-section)	Aluminium	370 x 192 mm	3149.00 cm4	8835.90 cm4	16.60 kg/ml
SELDEN	F406 (F-section)	Aluminium	408 x 207 mm	4725.00 cm4	14321.90 cm4	21.20 kg/ml
SELDEN	CC154-30 (Basic Section)	Karbon	157 x 87 mm	115.00 cm4	287.50 cm4	1.80 kg/ml
SELDEN	CC174-30 (Basic Section)	Karbon	177 x 93 mm	150.00 cm4	406.25 cm4	2.00 kg/ml
SELDEN	CC154-36 (Basic Section)	Karbon	158 x 88 mm	146.25 cm4	365.00 cm4	2.20 kg/ml
SELDEN	CC154-30 (0) (Section with Track)	Karbon	157 x 87 mm	115.00 cm4	377.50 cm4	2.30 kg/ml
SELDEN	CC174-36 (Basic Section)	Karbon	178 x 94 mm	190.00 cm4	513.75 cm4	2.40 kg/ml
SELDEN	CC154-30 (1) (Section with Track)	Karbon	157 x 87 mm	115.00 cm4	418.75 cm4	2.40 kg/ml
SELDEN	CC174-30 (0) (Section with Track)	Karbon	177 x 93 mm	150.00 cm4	522.50 cm4	2.50 kg/ml
SELDEN	CC154-30 (2) (Section with Track)	Karbon	157 x 87 mm	115.00 cm4	456.25 cm4	2.50 kg/ml
SELDEN	CC192-36 (Basic Section)	Karbon	195 x 102 mm	242.50 cm4	666.25 cm4	2.60 kg/ml
SELDEN	CC174-30 (1) (Section with Track)	Karbon	177 x 93 mm	150.00 cm4	575.00 cm4	2.60 kg/ml
SELDEN	CC154-36 (0) (Section with Track)	Karbon	158 x 88 mm	146.25 cm4	458.75 cm4	2.70 kg/ml
SELDEN	CC174-30 (2) (Section with Track)	Karbon	177 x 93 mm	150.00 cm4	626.25 cm4	2.70 kg/ml
SELDEN	CC154-36 (1) (Section with Track)	Karbon	158 x 88 mm	146.25 cm4	498.75 cm4	2.80 kg/ml
SELDEN	CC210-36 (Basic Section)	Karbon	213 x 110 mm	302.50 cm4	860.00 cm4	2.90 kg/ml
SELDEN	CC174-36 (0) (Section with Track)	Karbon	178 x 94 mm	190.00 cm4	635.00 cm4	2.90 kg/ml
SELDEN	CC154-36 (2) (Section with Track)	Karbon	158 x 88 mm	146.25 cm4	540.00 cm4	2.90 kg/ml
SELDEN	CC174-36 (1) (Section with Track)	Karbon	178 x 94 mm	190.00 cm4	687.50 cm4	3.00 kg/ml
SELDEN	CC192-42 (Basic Section)	Karbon	196 x 103 mm	293.75 cm4	805.00 cm4	3.10 kg/ml
SELDEN	CC226-36 (Basic Section)	Karbon	228 x 118 mm	376.25 cm4	1061.25 cm4	3.10 kg/ml
SELDEN	CC192-36 (0) (Section with Track)	Karbon	195 x 102 mm	242.50 cm4	810.00 cm4	3.10 kg/ml
SELDEN	CC174-36 (2) (Section with Track)	Karbon	178 x 94 mm		742.50 cm4	3.10 kg/ml
SELDEN	CC192-36 (1) (Section with Track)	Karbon	195 x 102 mm	242.50 cm4	873.75 cm4	3.20 kg/ml
SELDEN	CC192-36 (2) (Section with Track)	Karbon	195 x 102 mm	242.50 cm4	938.75 cm4	3.30 kg/ml
SELDEN	CC210-42 (Basic Section)	Karbon	214 x 111 mm	366.25 cm4	1040.00 cm4	3.40 kg/ml
SELDEN	CC210-36 (0) (Section with Track)	Karbon	213 x 110 mm	302.50 cm4	1030.00 cm4	3.40 kg/ml
SELDEN	CC210-36 (1) (Section with Track)	Karbon	213 x 110 mm	302.50 cm4	1108.75 cm4	3.50 kg/ml
SELDEN	CC226-42 (Basic Section)	Karbon	229 x 119 mm	456.25 cm4	1281.25 cm4	3.60 kg/ml
SELDEN	CC192-42 (0) (Section with Track)	Karbon	196 x 103 mm	293.75 cm4	953.75 cm4	3.60 kg/ml
SELDEN	CC226-36 (0) (Section with Track)	Karbon	228 x 118 mm	376.25 cm4	1256.25 cm4	3.60 kg/ml
SELDEN	CC210-36 (2) (Section with Track)	Karbon	213 x 110 mm	302.50 cm4	1188.75 cm4	3.60 kg/ml
SELDEN	CC192-42 (1) (Section with Track)	Karbon	196 x 103 mm	293.75 cm4	1018.75 cm4	3.70 kg/ml
SELDEN	CC226-36 (1) (Section with Track)	Karbon	228 x 118 mm	376.25 cm4	1347.50 cm4	3.70 kg/ml
SELDEN	CC192-42 (2) (Section with Track)	Karbon	196 x 103 mm	293.75 cm4	1083.75 cm4	3.80 kg/ml
SELDEN	CC226-36 (2) (Section with Track)	Karbon	228 x 118 mm	376.25 cm4	1440.00 cm4	3.80 kg/ml
SELDEN	CC244-42 (Basic Section)	Karbon	247 x 127 mm	560.00 cm4	1602.50 cm4	3.90 kg/ml
SELDEN	CC210-42 (0) (Section with Track)	Karbon	214 x 111 mm	366.25 cm4	1215.00 cm4	3.90 kg/ml
SELDEN	CC210-42 (1) (Section with Track)	Karbon	214 x 111 mm	366.25 cm4	1295.00 cm4	4.00 kg/ml
SELDEN	CC210-42 (2) (Section with Track)	Karbon	214 x 111 mm	366.25 cm4	1373.75 cm4	4.00 kg/ml
SELDEN	CC226-42 (0) (Section with Track)	Karbon	229 x 119 mm	456.25 cm4	1481.25 cm4	4.10 kg/ml
SELDEN	CC226-42 (1) (Section with Track)	Karbon	229 x 119 mm	456.25 cm4	1573.75 cm4	4.20 kg/ml
SELDEN	CC263-42 (Basic Section)	Karbon	265 x 135 mm	677.50 cm4	1967.50 cm4	4.20 kg/ml
SELDEN	CC226-42 (2) (Section with Track)	Karbon	229 x 119 mm	456.25 cm4	1668.75 cm4	4.30 kg/ml
SELDEN	CC244-42 (0) (Section with Track)	Karbon	247 x 127 mm	560.00 cm4	1833.75 cm4	4.40 kg/ml
SELDEN	CC244-48 (Basic Section)	Karbon	248 x 128 mm	658.75 cm4	1878.75 cm4	4.50 kg/ml
SELDEN	CC244-42 (1) (Section with Track)	Karbon	247 x 127 mm	560.00 cm4	2051.25 cm4	4.60 kg/ml
SELDEN	CC244-42 (2) (Section with Track)	Karbon	247 x 127 mm	560.00 cm4	2265.00 cm4	4.70 kg/ml
SELDEN	CC263-42 (0) (Section with Track)	Karbon	265 x 135 mm	677.50 cm4	2235.00 cm4	4.70 kg/ml
SELDEN	CC263-48 (Basic Section)	Karbon	266 x 136 mm	797.50 cm4	2305.00 cm4	4.80 kg/ml
SELDEN	CC263-42 (1) (Section with Track)	Karbon	265 x 135 mm	677.50 cm4	2488.75 cm4	4.80 kg/ml
SELDEN	CC244-48 (0) (Section with Track)	Karbon	248 x 128 mm	658.75 cm4	2113.75 cm4	5.00 kg/ml
SELDEN	CC263-42 (2) (Section with Track)	Karbon	265 x 135 mm	677.50 cm4	2747.50 cm4	5.00 kg/ml
SELDEN	CC284-48 (Basic Section)	Karbon	286 x 146 mm	1000.00 cm4	2892.50 cm4	5.10 kg/ml
SELDEN	CC244-48 (1) (Section with Track)	Karbon	248 x 128 mm	658.75 cm4	2335.00 cm4	5.10 kg/ml
SELDEN	CC263-48 (0) (Section with Track)	Karbon	266 x 136 mm	797.50 cm4	2576.25 cm4	5.30 kg/ml
SELDEN	CC244-48 (2) (Section with Track)	Karbon	248 x 128 mm	658.75 cm4	2555.00 cm4	5.30 kg/ml
SELDEN	CC263-54 (Basic Section)	Karbon	267 x 137 mm	918.75 cm4	2645.00 cm4	5.40 kg/ml
SELDEN	CC263-48 (1) (Section with Track)	Karbon	266 x 136 mm	797.50 cm4	2830.00 cm4	5.40 kg/ml
SELDEN	CC284-48 (0) (Section with Track)	Karbon	286 x 146 mm	1000.00 cm4	3205.00 cm4	5.60 kg/ml
SELDEN	CC263-48 (2) (Section with Track)	Karbon	266 x 136 mm	797.50 cm4	3087.50 cm4	5.60 kg/ml
SELDEN	CC284-54 (Basic Section)	Karbon	288 x 147 mm	1150.00 cm4	3316.25 cm4	5.80 kg/ml
SELDEN	CC284-48 (1) (Section with Track)	Karbon	286 x 146 mm	1000.00 cm4	3505.00 cm4	5.80 kg/ml
SELDEN	CC263-54 (0) (Section with Track)	Karbon	267 x 137 mm	918.75 cm4	2920.00 cm4	5.90 kg/ml
SELDEN	CC284-48 (2) (Section with Track)	Karbon	286 x 146 mm	1000.00 cm4	3801.25 cm4	6.00 kg/ml
SELDEN	CC263-54 (1) (Section with Track)	Karbon	267 x 137 mm	918.75 cm4	3177.50 cm4	6.10 kg/ml
SELDEN	CC303-54 (Basic Section)	Karbon	306 x 156 mm	1383.75 cm4	4003.75 cm4	6.20 kg/ml
SELDEN	CC263-54 (2) (Section with Track)	Karbon	267 x 137 mm	918.75 cm4	3437.50 cm4	6.20 kg/ml
SELDEN	CC284-54 (0) (Section with Track)	Karbon	288 x 147 mm	1150.00 cm4	3633.75 cm4	6.30 kg/ml
SELDEN	CC284-54 (1) (Section with Track)	Karbon	288 x 147 mm	1150.00 cm4	3937.50 cm4	6.50 kg/ml
SELDEN	CC303-54 (0) (Section with Track)	Karbon	306 x 156 mm	1383.75 cm4	4360.00 cm4	6.70 kg/ml
SELDEN	CC284-54 (2) (Section with Track)	Karbon	288 x 147 mm	1150.00 cm4	4241.25 cm4	6.70 kg/ml
SELDEN	CC303-60 (Basic Section)	Karbon	307 x 158 mm	1566.25 cm4	4516.25 cm4	6.90 kg/ml
SELDEN	CC303-54 (1) (Section with Track)	Karbon	306 x 156 mm	1383.75 cm4	4702.50 cm4	6.90 kg/ml
SELDEN	CC303-54 (2) (Section with Track)	Karbon	306 x 156 mm	1383.75 cm4	5042.50 cm4	7.00 kg/ml
SELDEN	CC303-60 (0) (Section with Track)	Karbon	307 x 158 mm	1566.25 cm4	4876.25 cm4	7.40 kg/ml
SELDEN	CC303-60 (1) (Section with Track)	Karbon	307 x 158 mm	1566.25 cm4	5225.00 cm4	7.60 kg/ml
SELDEN	CC303-60 (2) (Section with Track)	Karbon	307 x 158 mm	1566.25 cm4	5572.50 cm4	7.70 kg/ml
SPARCRAFT	S35 (Gamme S)	Aluminium	98 x 68 mm	35.00 cm4	70.00 cm4	1.70 kg/ml
SPARCRAFT	S50 (Gamme S)	Aluminium	108 x 74 mm	50.00 cm4	100.00 cm4	2.10 kg/ml
SPARCRAFT	S67 (Gamme S)	Aluminium	118 x 82 mm	67.00 cm4	128.00 cm4	2.20 kg/ml
SPARCRAFT	S80 (Gamme S)	Aluminium	133 x 82 mm	77.00 cm4	193.00 cm4	2.55 kg/ml
SPARCRAFT	S137 (Gamme S)	Aluminium	145 x 98 mm	137.00 cm4	306.00 cm4	3.10 kg/ml
SPARCRAFT	S180 (Gamme S)	Aluminium	159 x 104 mm	174.00 cm4	405.00 cm4	3.40 kg/ml
SPARCRAFT	S260 (Gamme S)	Aluminium	170 x 115 mm	257.00 cm4	585.00 cm4	4.20 kg/ml
SPARCRAFT	S330 (Gamme S)	Aluminium	180 x 120 mm	325.00 cm4	742.00 cm4	4.80 kg/ml
SPARCRAFT	F265E (Gamme F - Rullemast)	Aluminium	180 x 116 mm	265.00 cm4	560.00 cm4	4.90 kg/ml
SPARCRAFT	F365E (Gamme F - Rullemast)	Aluminium	200 x 124 mm	365.00 cm4	760.00 cm4	5.80 kg/ml
SPARCRAFT	S400 (Gamme S)	Aluminium	202 x 122 mm	400.00 cm4	1150.00 cm4	5.80 kg/ml
SPARCRAFT	S510 (Gamme S)	Aluminium	218 x 126 mm	505.00 cm4	1530.00 cm4	6.80 kg/ml
SPARCRAFT	F560E (Gamme F - Rullemast)	Aluminium	220 x 118 mm	510.00 cm4	1320.00 cm4	6.90 kg/ml
SPARCRAFT	S622 (Gamme S)	Aluminium	234 x 130 mm	622.00 cm4	1913.00 cm4	7.68 kg/ml
SPARCRAFT	S622 (Gamme S)	Aluminium	234 x 130 mm	622.00 cm4	1913.00 cm4	7.68 kg/ml
SPARCRAFT	T44 (Forward crossbeam)	Aluminium	228 x 125 mm	712.00 cm4	1773.00 cm4	8.20 kg/ml
SPARCRAFT	S1170 (Gamme S)	Aluminium	247 x 172 mm	1160.00 cm4	2480.00 cm4	8.98 kg/ml
SPARCRAFT	F760E (Gamme F - Rullemast)	Aluminium	253 x 128 mm	760.00 cm4	2220.00 cm4	9.00 kg/ml
SPARCRAFT	S830 (Gamme S)	Aluminium	255 x 140 mm	844.00 cm4	2638.00 cm4	9.03 kg/ml
SPARCRAFT	T40 (Gamme T)	Aluminium	239 x 142 mm	786.00 cm4	1597.00 cm4	9.50 kg/ml
SPARCRAFT	S1060 (Gamme S)	Aluminium	264 x 144 mm	1060.00 cm4	3250.00 cm4	9.97 kg/ml
SPARCRAFT	S1210 (Gamme S)	Aluminium	274 x 152 mm	1162.00 cm4	3572.00 cm4	10.50 kg/ml
SPARCRAFT	S1630 (Gamme S)	Aluminium	283 x 182 mm	1630.00 cm4	3885.00 cm4	10.70 kg/ml
SPARCRAFT	F980E (Gamme F - Rullemast)	Aluminium	277 x 140 mm	1039.00 cm4	3252.00 cm4	10.70 kg/ml
SPARCRAFT	S1395 (Gamme S)	Aluminium	285 x 155 mm	1395.00 cm4	4250.00 cm4	11.44 kg/ml
SPARCRAFT	S1540 (Gamme S)	Aluminium	300 x 164 mm	1540.00 cm4	4730.00 cm4	11.70 kg/ml
SPARCRAFT	S1420E (Gamme S - Rullemast)	Aluminium	295 x 154 mm	1420.00 cm4	4150.00 cm4	12.00 kg/ml
SPARCRAFT	S2100 (Gamme S)	Aluminium	328 x 180 mm	2074.00 cm4	6177.00 cm4	13.00 kg/ml
SPARCRAFT	T55 (Forward crossbeam)	Aluminium	285 x 155 mm	1970.00 cm4	4250.00 cm4	13.00 kg/ml
SPARCRAFT	T50 (Gamme T)	Aluminium	284 x 171 mm	1706.00 cm4	3179.00 cm4	15.30 kg/ml
SPARCRAFT	F1980E (Gamme F - Rullemast)	Aluminium	335 x 171 mm	1980.00 cm4	5650.00 cm4	15.90 kg/ml
SPARCRAFT	S3410 (Gamme S)	Aluminium	360 x 204 mm	3390.00 cm4	9335.00 cm4	15.95 kg/ml
SPARCRAFT	S4600 (Gamme S)	Aluminium	403 x 220 mm	4440.00 cm4	12600.00 cm4	18.00 kg/ml
SPARCRAFT	S3800E (Gamme S - Rullemast)	Aluminium	370 x 205 mm	3800.00 cm4	9600.00 cm4	19.15 kg/ml
SPARCRAFT	S7800 (Gamme S)	Aluminium	460 x 250 mm	7869.00 cm4	23670.00 cm4	24.30 kg/ml
SPARCRAFT	S7150E (Gamme S - Rullemast)	Aluminium	445 x 240 mm	7150.00 cm4	16750.00 cm4	26.00 kg/ml
Z-SPARS	Z105	Aluminium	72 x 57 mm	14.00 cm4	20.70 cm4	0.90 kg/ml
Z-SPARS	Z125	Aluminium	76 x 62 mm	21.00 cm4	33.00 cm4	1.25 kg/ml
Z-SPARS	Z145	Aluminium	81 x 68 mm	29.00 cm4	45.00 cm4	1.45 kg/ml
Z-SPARS	Z170	Aluminium	98 x 68 mm	33.00 cm4	65.00 cm4	1.64 kg/ml
Z-SPARS	Z190	Aluminium	108 x 78 mm	40.00 cm4	94.00 cm4	1.92 kg/ml
Z-SPARS	Z230	Aluminium	122 x 82 mm	69.00 cm4	143.00 cm4	2.29 kg/ml
Z-SPARS	Z230E (Rullemast)	Aluminium	124 x 80 mm	90.00 cm4	160.00 cm4	2.50 kg/ml
Z-SPARS	Z265	Aluminium	143 x 96 mm	118.00 cm4	238.00 cm4	2.72 kg/ml
Z-SPARS	Z301	Aluminium	160 x 105 mm	149.00 cm4	343.00 cm4	3.02 kg/ml
Z-SPARS	Z351	Aluminium	160 x 105 mm	173.00 cm4	391.00 cm4	3.44 kg/ml
Z-SPARS	Z300E (Rullemast)	Aluminium	160 x 105 mm	162.00 cm4	400.00 cm4	3.50 kg/ml
Z-SPARS	Z401	Aluminium	179 x 119 mm	260.00 cm4	601.00 cm4	4.10 kg/ml
Z-SPARS	Z501	Aluminium	189 x 125 mm	326.00 cm4	760.00 cm4	4.60 kg/ml
Z-SPARS	Z400E (Rullemast)	Aluminium	183 x 117 mm	280.00 cm4	585.00 cm4	4.90 kg/ml
Z-SPARS	Z532	Aluminium	201 x 124 mm	380.00 cm4	998.00 cm4	5.38 kg/ml
Z-SPARS	Z500E (Rullemast)	Aluminium	200 x 124 mm	370.00 cm4	785.00 cm4	5.40 kg/ml
Z-SPARS	Z602	Aluminium	223 x 138 mm	518.00 cm4	1411.00 cm4	6.21 kg/ml
Z-SPARS	Z602E (Rullemast)	Aluminium	223 x 138 mm	544.00 cm4	1286.00 cm4	6.85 kg/ml
Z-SPARS	Z702	Aluminium	240 x 146 mm	726.00 cm4	1951.90 cm4	7.61 kg/ml
Z-SPARS	Z792	Aluminium	247 x 130 mm	954.00 cm4	2565.00 cm4	8.12 kg/ml
Z-SPARS	Z902	Aluminium	257 x 160 mm	1022.00 cm4	2641.00 cm4	8.96 kg/ml
Z-SPARS	Z902E (Rullemast)	Aluminium	257 x 160 mm	1032.00 cm4	2301.00 cm4	9.54 kg/ml
Z-SPARS	Z1001	Aluminium	290 x 175 mm	1452.00 cm4	3677.00 cm4	9.77 kg/ml
Z-SPARS	P1040	Aluminium	290 x 149 mm	1032.00 cm4	3790.00 cm4	9.84 kg/ml
Z-SPARS	Z1100E (Rullemast)	Aluminium	290 x 175 mm	1550.00 cm4	3550.00 cm4	11.60 kg/ml
Z-SPARS	Z1250	Aluminium	310 x 182 mm	1838.00 cm4	4994.90 cm4	11.76 kg/ml
Z-SPARS	Z1370	Aluminium	270 x 155 mm	1146.00 cm4	2427.90 cm4	13.95 kg/ml
Z-SPARS	Z1402	Aluminium	340 x 200 mm	2650.00 cm4	7118.90 cm4	13.98 kg/ml
Z-SPARS	Z1400E (Rullemast)	Aluminium	340 x 200 mm	2500.00 cm4	5550.90 cm4	14.00 kg/ml
Z-SPARS	Z1602	Aluminium	390 x 230 mm	4225.00 cm4	11213.90 cm4	16.60 kg/ml
Z-SPARS	Z1600E (Rullemast)	Aluminium	390 x 210 mm	3500.00 cm4	10000.90 cm4	16.70 kg/ml
Z-SPARS	Z2302	Aluminium	460 x 270 mm	8188.00 cm4	21280.90 cm4	22.90 kg/ml
Z-SPARS	M300	Aluminium	500 x 270 mm	10216.00 cm4	29974.90 cm4	29.22 kg/ml
Z-SPARS	M300E (Rullemast)	Aluminium	500 x 270 mm	12350.00 cm4	29125.90 cm4	34.50 kg/ml
Z-SPARS	P15000	Aluminium	600 x 285 mm	15000.00 cm4	52000.90 cm4	35.00 kg/ml
Z-SPARS	M540	Aluminium	600 x 285 mm	21106.00 cm4	94993.90 cm4	54.02 kg/ml

Logg inn to leave a comment

Halyard wrap

Andre Blokker

Annet dekksutstyr

​Oversikt over forskjellige masteprofiler fra masteprodusent

Vi har laget en oversikt over forskjellige masteprofiler fra forskjellige masteprodusenter.

Oversikt over forskjellige masteprofiler fra masteprodusent
